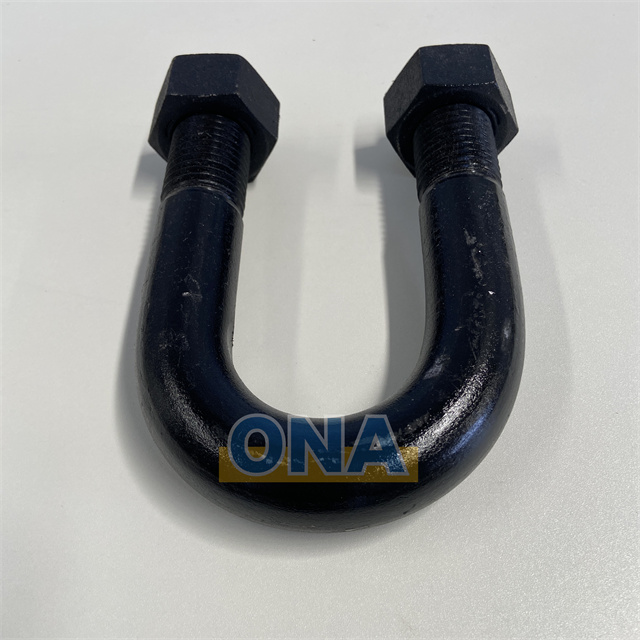

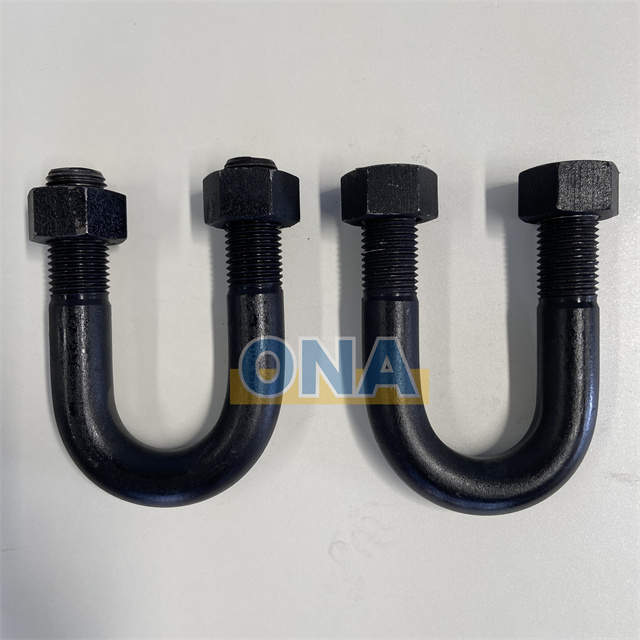

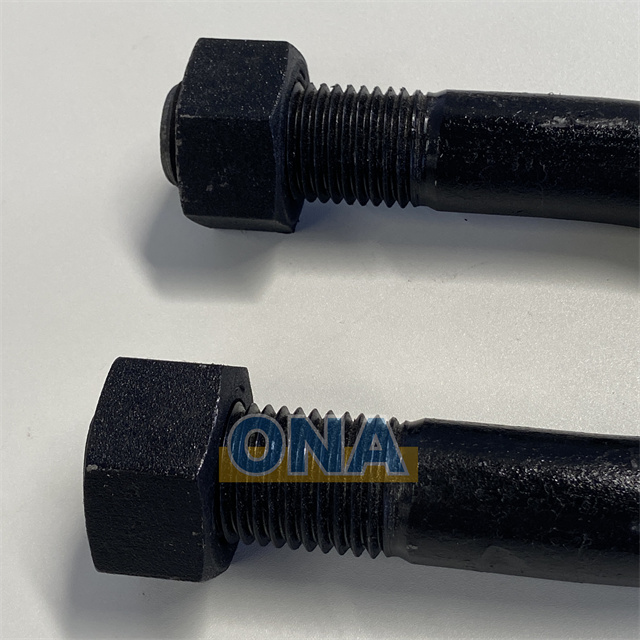

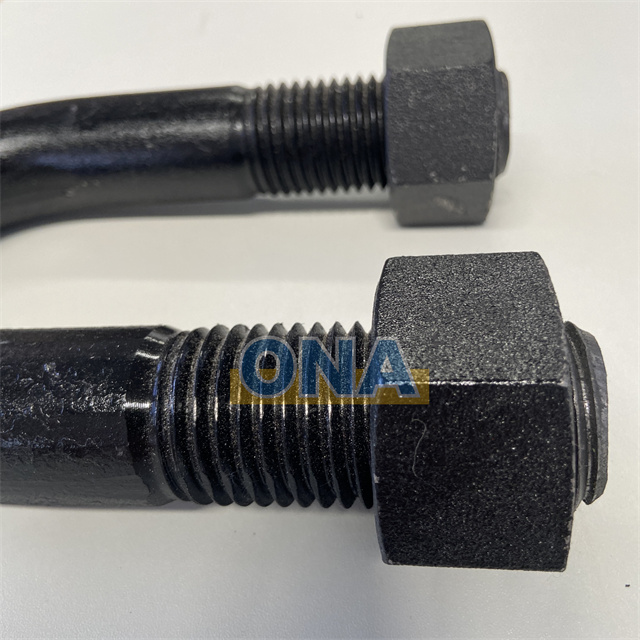

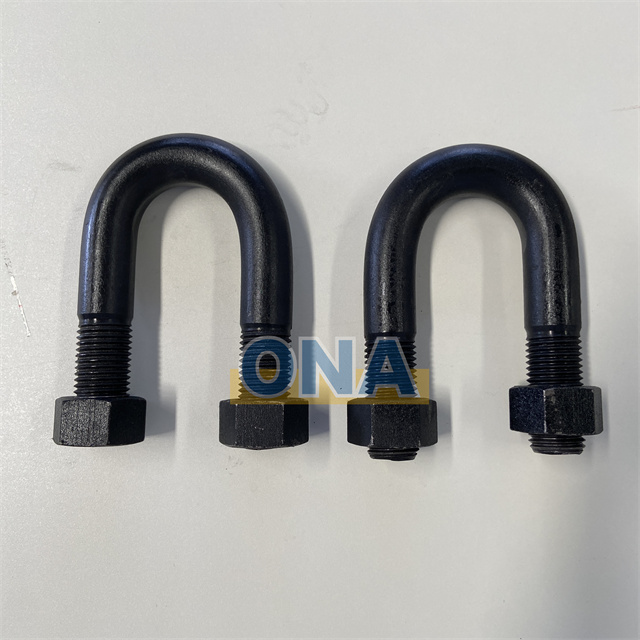

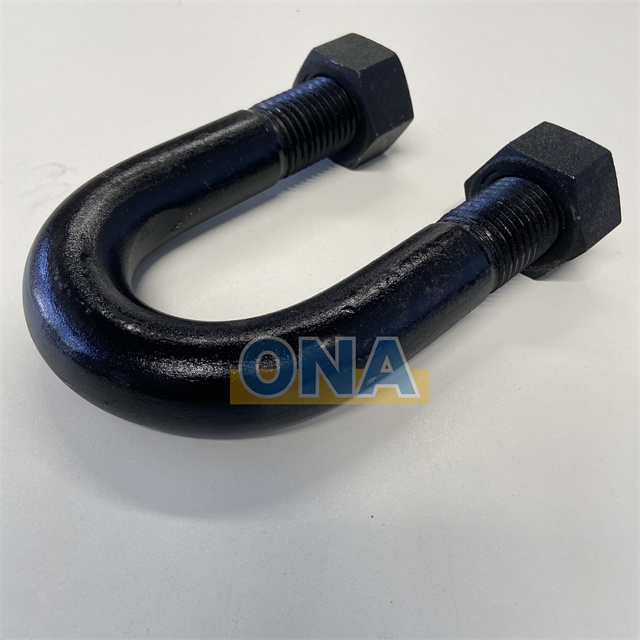

U-BOLT ONA-1970-5821 Suitable for Symons 4.25FT Cone Crusher

Product Overview

The U-bolt ONA-1970-5821 is a precision-engineered fastening component specifically designed for the adjustment ring assembly of cone crushers suitable for Symons 4.25FT. This U-shaped bolt plays a critical role in securing and locking the adjustment ring in its proper position, ensuring stable crusher operation throughout the crushing process. As a direct replacement part for cone crushers suitable for Symons 4-1/4FT, the ONA-1970-5821 U-bolt is manufactured to exacting standards to match original equipment specifications, providing a reliable and durable fastening solution for maintenance and repair.

The cone crusher suitable for Symons 4.25FT, also known as the cone crusher suitable for Symons 4-1/4FT, is a widely recognised machine in the mining and aggregate industries, renowned for its reliable crushing performance in secondary and tertiary applications. The adjustment ring, which the U-bolt helps secure, is responsible for controlling the crusher's closed side setting (CSS) – the critical parameter that determines product size and crushing efficiency. By firmly locking the adjustment ring in position, the U-bolt prevents unwanted ring movement that could lead to inconsistent product gradation, uneven liner wear, or even mechanical damage to crushers suitable for Symons. This makes the U-bolt a small but essential component for maintaining optimal performance of parts suitable for Symons cone crusher and protecting other expensive components from premature failure.

Product Advantages

Precision-Engineered Fit
The ONA-1970-5821 U-bolt is manufactured to OEM specifications, ensuring seamless compatibility with cone crushers suitable for Symons 4.25FT. This precise fit eliminates the need for modifications during installation, reducing maintenance time and labour costs significantly.

Superior Strength and Durability
Made from high-strength alloy steel, this U-bolt is designed to withstand the extreme forces and vibrations generated during crushing operations. The robust construction ensures long service life even in the most demanding mining and quarrying environments.

Reliable Locking Performance
The U-shaped design provides a secure clamping force around the adjustment ring, preventing loosening or shifting that could compromise crusher performance. This reliable locking action helps maintain consistent product quality and protects other critical components from damage.

Corrosion and Wear Resistance
The U-bolt features a protective surface treatment that resists corrosion, rust, and wear, ensuring reliable performance even in harsh operating conditions with exposure to moisture, dust, and abrasive materials.

Cost-Effective Maintenance Solution
As a direct-fit aftermarket part for cone crusher models suitable for Symons, the ONA-1970-5821 U-bolt offers exceptional value compared to genuine alternatives. It provides the same quality and reliability at a more competitive price, helping operators reduce maintenance costs without sacrificing performance.

Easy Installation
The straightforward bolt design allows for quick and hassle-free installation. Simply remove the worn U-bolt, clean the mounting surface, and install the new ONA U-bolt using standard tools. No special equipment or extensive technical knowledge is required.

Applications

Mining Operations
The ONA-1970-5821 U-bolt is widely used in hard rock mining applications for processing ores such as iron, copper, and gold. The robust design ensures reliable locking performance under extreme loads in demanding mining environments for crushers suitable for Symons.

Aggregate Production
In aggregate plants producing crushed stone for construction, the U-bolt maintains precise adjustment ring positioning to ensure consistent product size and grading, contributing to the production of high-quality aggregate materials using cone crusher technology suitable for Symons.

Quarrying Applications
The U-bolt performs reliably in quarrying operations processing granite, basalt, and other hard rocks. Its durable construction withstands the heavy vibrations and shock loads typical of quarry crushing circuits utilizing crusher components suitable for Symons.

Secondary and Tertiary Crushing Circuits
The ONA-1970-5821 U-bolt is essential in secondary and tertiary crushing stages where product size control is critical. Keeping the adjustment ring securely locked, it helps maintain the precise CSS required for optimal product quality in cone crusher applications suitable for Nordberg Symons.

FAQs

Q1: Is the ONA-1970-5821 U-bolt a direct replacement for the original part?

Yes, the ONA-1970-5821 U-bolt is precision-engineered as a direct replacement for the original part used in cone crushers suitable for Symons 4.25FT. It is manufactured to OEM specifications and requires no modifications for installation. Please confirm your crusher model and original part number before ordering to ensure correct fitment.

Q2: How often should the U-bolt be inspected or replaced?

The ONA-1970-5821 U-bolt should be inspected during routine maintenance intervals. Check for signs of wear such as thread damage, bending, cracking, or corrosion. Replace immediately if any damage is detected. ONA recommends keeping a spare U-bolt in stock to minimize downtime during scheduled or emergency maintenance for your cone crusher suitable for Symons.

Q3: Does ONA offer U-bolts for other Symons cone crusher models?

Yes, ONA manufactures U-bolts for a wide range of cone crusher models suitable for Symons, including 2ft, 3ft, 5.5ft, and 7ft configurations. For models not listed or for custom orders based on your drawings, please contact ONA directly for a quotation.
