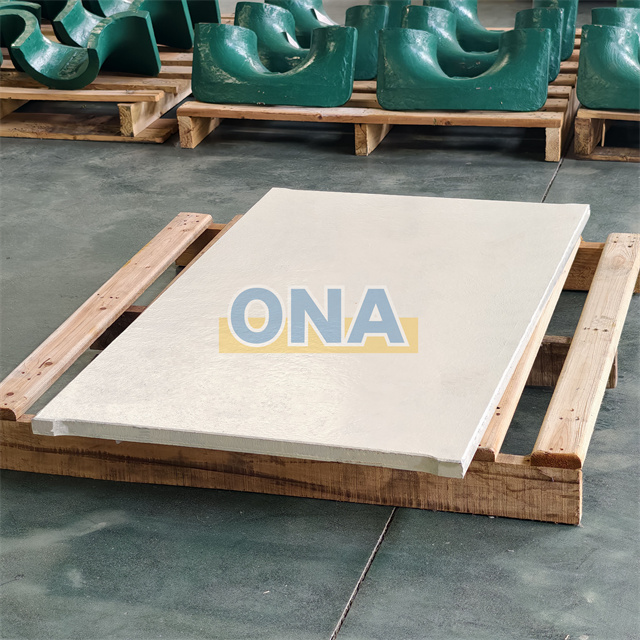

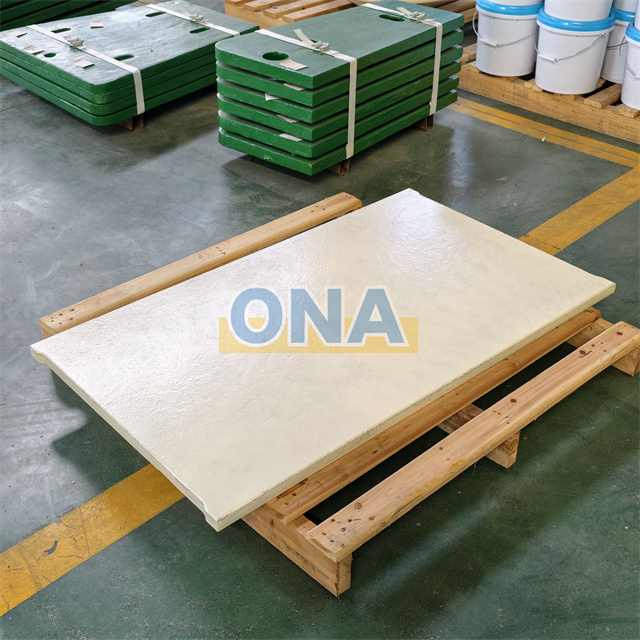

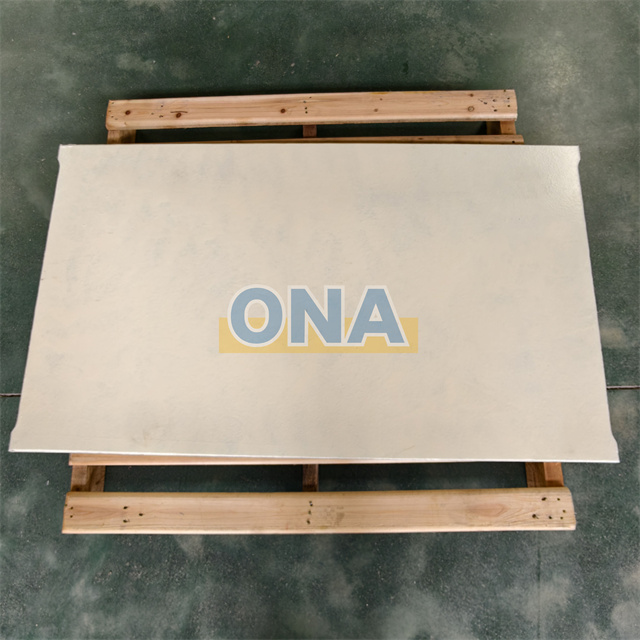

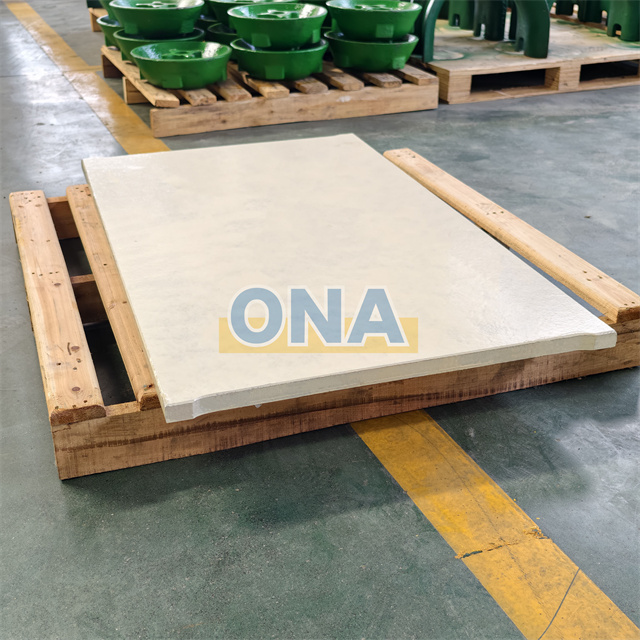

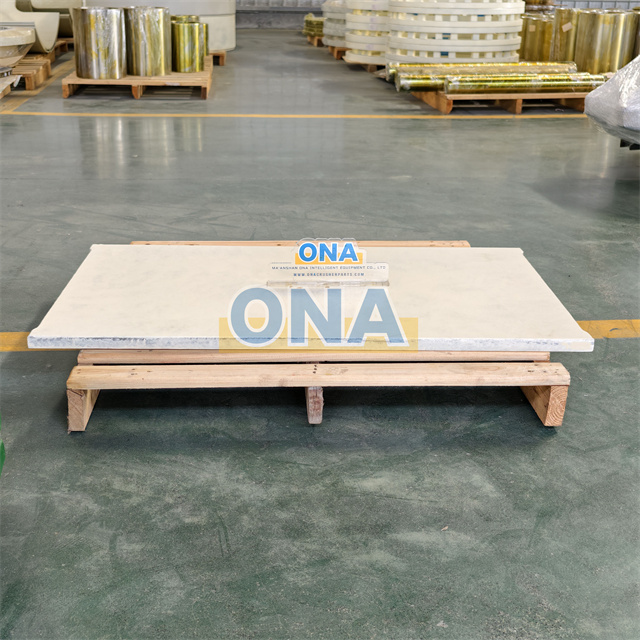

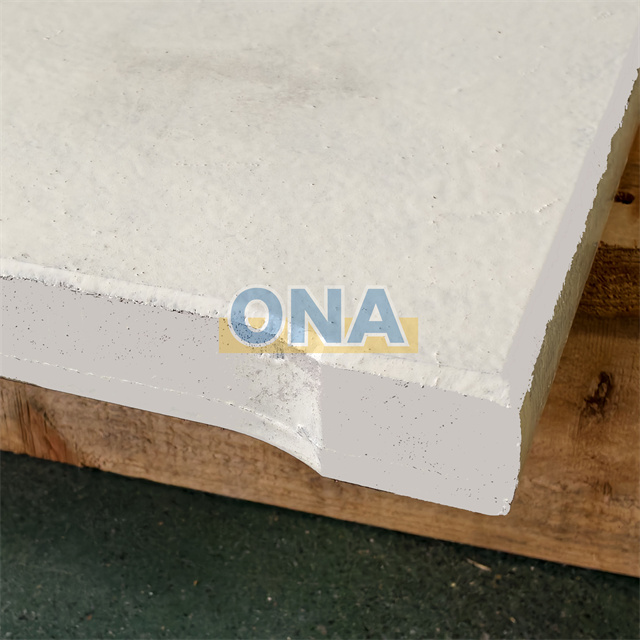

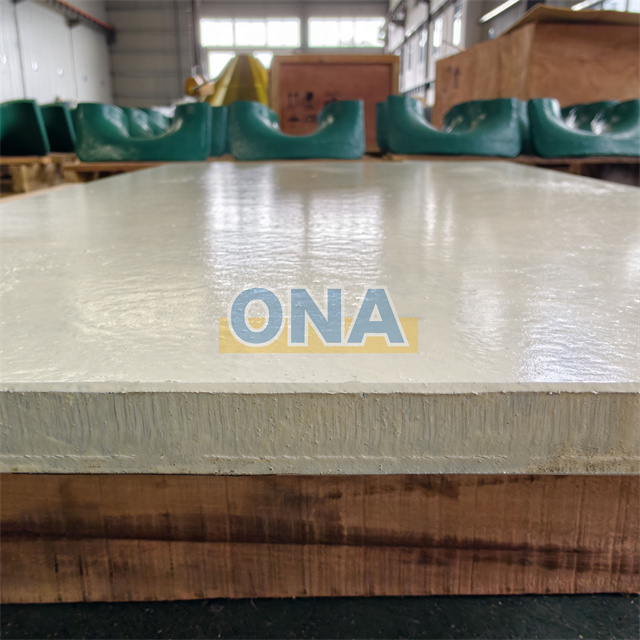

Toggle Plate ONA-MM1155334 Suitable for Metso C130 Jaw Crusher

Product Overview
The toggle plate is a critical component installed between the pitman assembly and the rear end of the crusher frame, serving as the key link that transmits motion from the pitman to the swing jaw. This jaw crusher toggle plate plays two essential roles: it transfers the crushing force generated by the eccentric shaft to the movable jaw plate, and it acts as a mechanical fuse to protect the crusher from catastrophic damage when overload conditions occur.

The function of the toggle plate in a jaw crusher is often misunderstood. While it transmits power, its most important job is the crusher's safety device. The jaw crusher toggle plate material is carefully selected to provide the optimal balance of strength and controlled fracture characteristics. When the crusher experiences a "stall" condition – caused by excessive feed or extremely sticky material – the toggle plate for the jaw crusher is designed to break, increasing the discharge opening to allow trapped material to pass and protecting the pitman, flywheel, and main frame from severe damage. ONA-MM1155334 is a precision-engineered crusher toggle plate suitable for Metso C130 jaw crusher, manufactured to exact OEM specifications and 100% dimensionally inspected for perfect fitment.

Product Advantages

Superior Overload Protection

The toggle plate serves as the crusher's primary safety mechanism. When the crusher experiences a stall condition – such as an excessive feed of material or extremely sticky material that causes the pitman to stop rotating – the jaw crusher toggle plate is designed to collapse before excessive loads can damage the pitman, flywheel, or main frame. This sacrificial design protects your investment from costly repairs and extensive downtime. ONA-MM1155334 is engineered to the correct strength specification, ensuring it breaks at the right load level to protect your crusher, suitable for Metso C130.

Precise Power Transmission

The function of the toggle plate in a jaw crusher is to efficiently transfer the eccentric shaft's motion to the swing jaw. A properly manufactured toggle plate for a jaw crusher ensures optimal crushing force is delivered to the material. ONA-MM1155334 is machined to precise dimensions, ensuring proper engagement with the toggle seats and consistent power transmission throughout the crushing cycle, resulting in higher crushing efficiency and better product shape.

Durable Material Construction

The jaw crusher toggle plate material is critical to its performance. ONA-MM1155334 is manufactured from high-quality alloy steel, carefully selected to provide the optimal balance of strength and controlled fracture characteristics. This ensures the toggle plate on the jaw crusher performs reliably under normal operation while still providing the necessary overload protection when needed. The material is heat-treated to achieve the correct hardness and toughness for the C130 application.

Direct Fit Replacement

As a direct-fit replacement for the original toggle plate suitable for Metso C130, ONA-MM1155334 requires no modifications during installation. The toggle plate jaw crusher component is manufactured to the same dimensional standards as the OEM part, ensuring seamless integration with your existing toggle seats and tension mechanism. This simplifies maintenance and reduces downtime during replacement.

Applications and Stock Availability
ONA-MM1155334 is specifically designed for the crusher suitable for Nordberg C130 jaw crusher. This toggle plate is suitable for both stationary and mobile C130 applications. ONA maintains a comprehensive inventory of jaw crusher toggle plates suitable for Metso C series crushers, including C80, C96, C106, C116, C120, C130, C140, C150, C160, and C200 models, as well as toggle plates suitable for Sandvik, Tri0, and other major brands. The table below lists some of the toggle plates we stock. For models not listed or for custom requirements, please contact ONA with your part number or equipment details.

FAQs

Q1: How do I know when the toggle plate needs to be replaced?

The toggle plate should be replaced immediately after any stall or overload event, even if it appears intact. Micro-cracks may not be visible to the naked eye but can compromise the plate's ability to protect the crusher during future overloads. ONA recommends inspecting the toggle plate during every routine maintenance interval and replacing it if any signs of wear, deformation, or cracking are detected.

Q2: Can I use a toggle plate from a different crusher model on my C130?

No. Each toggle plate is specifically engineered for a particular crusher model in terms of size, strength rating, and fracture characteristics. Using an incorrect toggle plate may result in either premature breakage under normal loads or failure to break during an overload, both of which can cause significant damage to the crusher. Always use a toggle plate designed for your specific model, such as the ONA-MM1155334 for the crusher suitable for Metso C130.

Q3: What causes a toggle plate to break under normal operation?

A toggle plate should not break under normal crushing conditions. If it does, the most common causes are: excessive feed material causing a stall condition, highly sticky material that prevents the pitman from rotating, worn toggle seats causing uneven load distribution, or a weakened plate due to previous stress or micro-cracks. If you experience frequent toggle plate failures, ONA recommends inspecting the toggle seats, tension mechanism, and feed conditions to identify the root cause.
