Understanding VSI Crusher Parts for Beginners

You might wonder what vsi crusher parts are. These parts make up the main working sections of a vsi, or vertical shaft impactor. A vsi uses a spinning rotor to crush rocks into smaller, cubical pieces. When you know each part and how it works, you can spot problems early and keep your crusher running smoothly. Many beginners find that learning about vsi crusher parts helps lower maintenance costs and boosts efficiency. With the right skills, you can make quick repairs, reduce downtime, and get the most from your vsi.

Key Takeaways

• VSI crushers have a rotor that spins very fast. This rotor breaks rocks into small, cube-shaped pieces. These crushers are good for making fine and shaped materials.

• It is important to know the main parts like the rotor, retaining bar, wear plates, anvils, shaft, and bearings. This helps you find problems early. It also helps keep the crusher working well.

• You should check and change worn parts often. This stops breakdowns and cuts down on lost time. It also saves money on fixing the crusher.

• Pick strong, high-quality parts that fit your crusher. This makes the crusher work better. It also helps your machine last longer.

• Use parts that are easy to take care of, like the ONA retaining bar with a cam-lock design. This makes repairs faster. It also keeps your VSI crusher working well.

VSI Crusher Parts Overview

What Is a VSI?

You might have heard about a vertical shaft impactor, or VSI. This machine is used to crush rocks. A VSI has a fast-spinning rotor inside. The rotor throws rocks at hard surfaces in the machine. This breaks the rocks into smaller, better-shaped pieces. VSI crushers make fine, cubical particles. Jaw and cone crushers do not make shapes like this. VSI crushers are often used last when making sand or shaping rocks for building.

Here’s a simple table to show how a VSI is different:

Key Components

It is important to know the main parts of a VSI crusher. Each part has a job in crushing rocks. When you know these parts, you can keep your VSI working well.

• The rotor is the main part. It spins fast and uses special tips to speed up rocks.

• Rotor tips are strong and last long because they have tungsten carbide.

• The fast rocks hit the walls inside the chamber and break apart.

• Wear plates and anvils protect the inside from getting damaged.

• The shaft and bearings hold the rotor and keep it steady.

• Retaining bars, like the ONA RC840 Basic Rotor Retaining Bar, keep rotor parts in place and help with repairs.

Tip: If you pick good VSI crusher parts, your machine will make better-shaped rocks for building and recycling.

All these parts work together to help your VSI crusher run well. If you learn about each part, you can find problems early and keep your VSI in good shape.

Main Parts of a Vertical Shaft Impactor

A vertical shaft impactor uses several main parts to crush rocks and shape materials. You need to know how each part works to keep your vsi running well. Here is a closer look at the most important vsi crusher parts:

Rotor

The rotor is the heart of your vsi. It spins at high speed and throws rocks outward. When rocks hit the rotor, they gain speed and smash into anvils or other rocks. This action breaks them into smaller, cubical pieces. The rotor’s speed and how much material you feed into it change the size and shape of the final product. You can get better particle shape and more uniform size by adjusting the rotor speed and feed rate. The rotor also helps reduce energy use by breaking rocks directly, without leaving stress inside the particles. Wear parts like rotor tips and backup tips protect the rotor from damage. These tips often use tungsten carbide to last longer. You should check these parts often and replace them when you see wear or cracks.

• The rotor uses high-speed movement to fling rocks against anvils.

• Rotor tips and backup tips protect the rotor from wear.

• Changing rotor speed and feed rate lets you control product size and energy use.

• New rotor designs make it easier to change parts, which reduces downtime.

Note: The impeller is another name for the spinning part inside the rotor. It helps move rocks through the crusher.

Retaining Bar

The retaining bar holds the rotor parts in place. Without it, the rotor could not work safely. The ONA RC840 Basic Rotor Retaining Bar is a great example of this part. You can use it with the Metso Barmac RC840 vertical shaft impactor. This retaining bar uses a special cam-lock design. You do not need bolts to fix it in place. This makes maintenance much easier and faster. When you remove the retaining bar, you can reach all the main wear parts through the service door. This saves you time and effort during repairs. The ONA retaining bar fits perfectly with the original equipment. It keeps the rotor stable, even when the crusher spins at high speed. You can trust this part to help your vsi crusher run smoothly and safely.

• The cam-lock design makes it easy to install and remove.

• You can quickly replace wear parts like rotor tips and cavity wear plates.

• The ONA retaining bar works well with other rotor parts and lasts a long time.

Wear Plates

Wear plates protect the inside of your vsi from damage. Rocks moving at high speed can wear down the rotor and other parts. Wear plates cover the upper and lower faces inside the rotor. They also protect the edges and the distributor plate. Most wear plates use strong materials like high chrome steel, manganese steel, or alloy steel. Some have tungsten inserts to last even longer. You should check wear plates often. Replace them when you see wear, cracks, or when bolt heads become visible. If you let them wear out too much, other parts may get damaged. Wear plates are easy to remove and replace because they are held in place by clips and centrifugal force.

• Wear plates shield the rotor and other parts from impact and abrasion.

• You can find wear plates made from different strong metals.

• Replace wear plates when you see visible wear or damage.

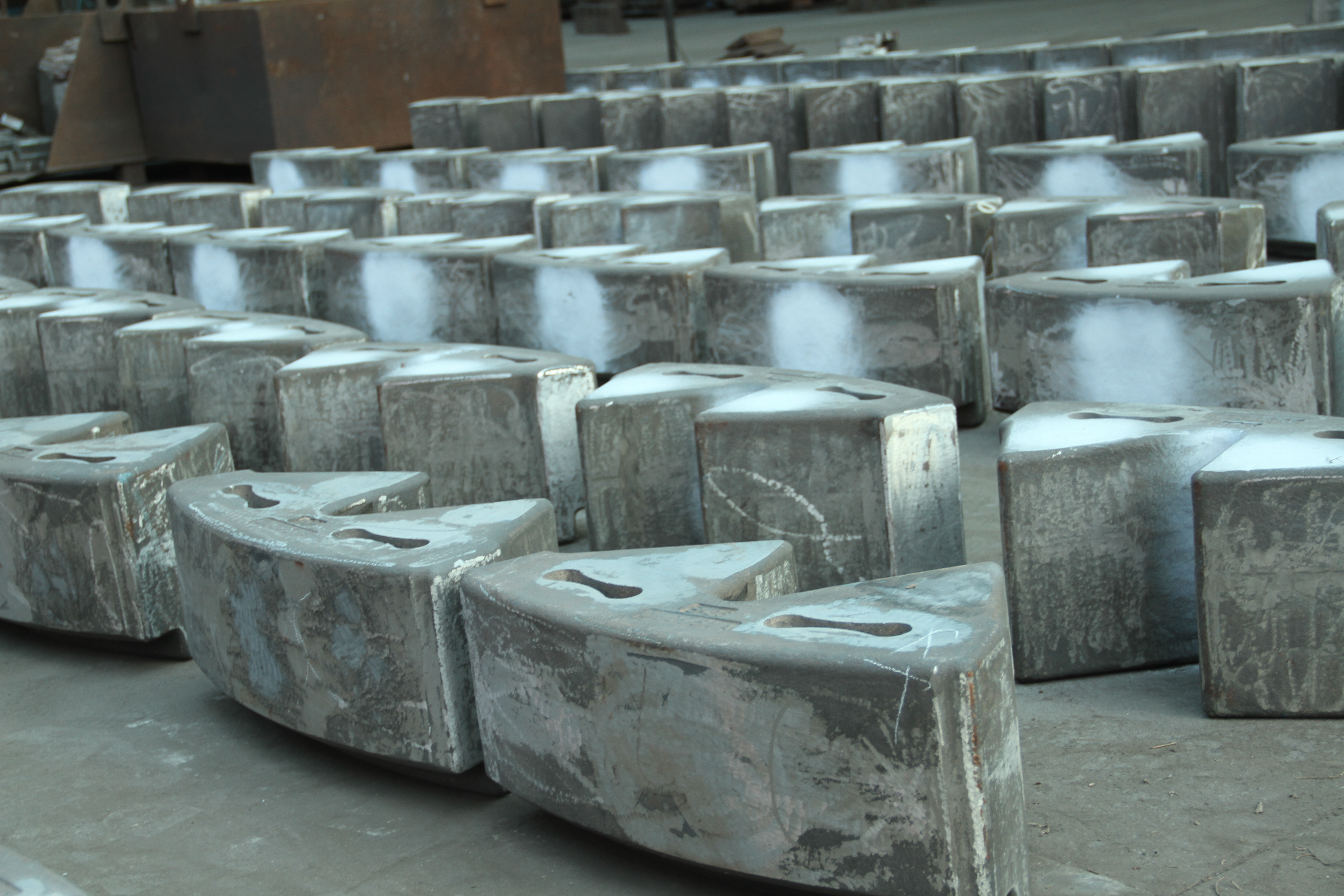

Anvils

Anvils are fixed surfaces inside the vsi. When rocks leave the rotor, they hit the anvils and break apart. The shape and angle of the anvils help crush the rocks more efficiently. Anvils also affect the shape of the final product. If the anvils have sharp edges, they can break rocks into better shapes. The design of the anvils helps you get the right size and shape for your needs. You should check anvils for wear and replace them if they get too worn down.

Tip: Good anvil design helps you get more cubical and uniform particles from your vsi crusher.

Shaft and Bearings

The shaft and bearings support the rotor and let it spin smoothly. These parts are very important for the reliability of your vsi crusher. If the shaft or bearings fail, your crusher will stop working. You should inspect these parts often and keep them well-lubricated. Good lubrication reduces friction and wear. This can make your vsi last longer and work better. Using high-quality shaft and bearing parts can also reduce how often you need to replace them. Most problems with shafts and bearings come from poor lubrication. Training your team to spot problems early can save you money and prevent breakdowns.

• The shaft and bearings keep the rotor spinning straight and true.

• Regular checks and lubrication help prevent failures.

• High-quality parts and good maintenance increase the life of your vsi crusher.

Remember: If you take care of these main vsi crusher parts, your vertical shaft impactor will work better and last longer.

How VSI Crusher Parts Work Together

Crushing Process

When you use a vsi crusher, each part has a special job. The process starts when you feed material into the hopper. The feed tube guides the rocks into the center of the rotor. The rotor spins at high speed and uses centrifugal force to throw the material outward. As the rocks leave the rotor, they hit stationary surfaces like anvils or a rock bed inside the crushing chamber. This impact breaks the rocks into smaller, cubical pieces.

Here is a step-by-step look at how the main parts work together:

1. Material enters the vsi through the feed hopper.

2. The feed tube and distribution cone guide the material into the rotor.

3. The rotor accelerates the material to a high velocity.

4. The material is thrown against anvils or a rock bed in the crushing chamber.

5. The impact crushes the material and shapes it into fine, cubical particles.

6. Crushed material exits through the discharge outlet.

7. The drive system powers the rotor, while the lubrication system keeps moving parts running smoothly.

8. You can adjust the rotor speed and feed rate using the control panel to get the product size you want.

Tip: The design of the rotor and the quality of wear parts play a big role in the final product shape and size.

Importance of Quality

The quality of vsi crusher parts affects everything from performance to maintenance. Durable, wear-resistant parts help you process tough materials like granite or basalt. High-quality rotor tips and wear plates last longer, so you spend less time on repairs and more time crushing. When you use advanced materials, such as high-chrome alloys or ceramic inserts, you get better wear life and more consistent results.

• Quality parts keep your vsi running longer with fewer breakdowns.

• Good parts help you make sand and aggregates with the right shape and size.

• Using strong rotor parts means less downtime and lower costs.

• High-quality parts also help the environment by reducing waste and energy use.

If you choose low-quality parts, you may see more wear, more frequent replacements, and uneven product quality. Reliable parts, like those from trusted brands, support better performance and help you meet strict standards for your final product.

Maintenance Tips for VSI Crusher Parts

Common Issues

You may notice several common issues when working with vsi crushers. These problems can affect how well your machine runs and how long your parts last.

• Abnormal vibration often happens if you feed too much material or if the rocks are too large. This can cause material to build up and make the crusher unstable.

• The spindle may bend or deform. When this happens, you will see more vibration. You should check the spindle often and replace it if needed.

• Internal wear parts, such as wear-resistant blocks, can wear down quickly. If these parts wear out, you might see blockages or more vibration during crushing.

Regular maintenance helps you spot these issues early. If you fix them right away, you can avoid bigger problems and keep your vsi running smoothly.

Inspection and Replacement

You should inspect your vsi crusher parts on a regular schedule. Look for signs of wear, such as reduced performance, more vibration, or changes in product size. If you notice these signs, it is time to check each part closely.

Here is a simple table to help you know when to replace key parts:

You should always replace parts in balanced sets. This keeps the rotor balanced and prevents extra damage. If you use high-quality parts and follow a regular inspection plan, you can cut downtime by up to 30%. Operators who check their vsi every few hours avoid costly repairs and keep production on track.

The ONA retaining bar makes maintenance easier. Its cam-lock design lets you remove it quickly, so you can reach all main wear parts through the service door. This saves you time and helps you replace rotor tips, wear plates, and other parts without taking apart the whole crusher.

Proactive maintenance extends the life of your parts, keeps your vsi efficient, and reduces repair costs. Skipping inspections can lead to days of downtime and expensive repairs.

Choosing VSI Crusher Parts

What to Look For

When you choose parts for your vsi crusher, you want to make sure they fit your needs. Start by thinking about the type and hardness of the material you plan to crush. Harder rocks like granite need stronger parts. Check the size of the feed material. Some crushers handle bigger rocks better than others. Think about where you use the crusher in your process. VSI crushers often work best in the final stage to shape the product.

You should also look at these important points:

• Make sure the parts match your crusher model. For example, the ONA RC840 Basic Rotor Retaining Bar fits the Metso Barmac RC840 perfectly. This ensures smooth operation and easy maintenance.

• Pick parts made from strong materials like high-chromium cast iron or ceramic. These last longer and resist wear.

• Look for parts with a good warranty. A one-year warranty shows the manufacturer stands behind their product.

• Check for industry certifications like ISO 9001 or CE. These prove the parts meet quality and safety standards.

• Choose parts that make maintenance simple. The ONA retaining bar uses a cam-lock design, so you can remove and replace wear parts quickly.

Tip: Always check if the parts allow easy access for service. This saves you time and reduces downtime.

Buying Tips

When you buy vsi crusher parts, focus on quality and reliability. Do not pick parts just because they cost less. Cheap parts may wear out fast and cause more problems. Always buy from trusted brands with a good reputation. ONA is known for high-quality products and strong customer support.

Here is a quick table to help you compare:

Ask for proof of certification and warranty before you buy. If you have questions, talk to an expert or the supplier. This helps you get the right parts for your vsi and keeps your machine running well.

Understanding VSI crusher parts gives you the power to keep your machine running smoothly. When you know how each part works, you can:

• Spot early signs of wear through regular checks and visual inspections.

• Use cleaning and lubrication to reduce friction and extend part life.

• Choose high-quality, wear-resistant materials for better durability.

If you want the best results, follow expert advice:

1. Match part materials to your rock type and application.

2. Replace worn rotor tips and wear plates on time.

3. Ask professionals for help to select the right parts for your needs.

With these steps, you can boost crusher performance, lower costs, and keep your VSI working safely and efficiently.

FAQ

What does a retaining bar do in a VSI crusher?

A retaining bar holds the rotor parts in place. You can remove it to access and replace wear parts. The ONA RC840 Basic Rotor Retaining Bar uses a cam-lock design, so you do not need bolts.

How often should you inspect VSI crusher parts?

You should inspect VSI crusher parts every few hours during operation. Look for signs of wear, cracks, or vibration. Regular checks help you spot problems early and keep your crusher running smoothly.

Why is part compatibility important?

You need parts that fit your crusher model exactly. Using the wrong parts can cause damage or poor performance. Always check compatibility before you buy or install new parts.

What materials last longest for wear parts?

Wear parts made from high-chromium steel, manganese steel, or tungsten carbide last longer. These materials resist wear and help your VSI crusher work better for a longer time.

How does the ONA retaining bar make maintenance easier?

The ONA retaining bar uses a cam-lock system. You can remove it quickly and reach all main wear parts through the service door. This design saves you time and reduces downtime during maintenance.
